SMA 27.0 GHz

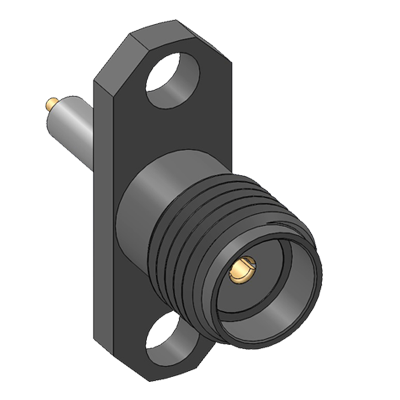

Delta's SMA 27.0 GHz Series

These high-performance SMA connectors feature maximum VSWR of 1.10:1 from DC to 18 GHz, and 1.15:1 from 18 to 27.0 GHz. They are designed to provide enhanced durability and reliability in a “field grade” production connector.

The internal design is optimized using state-of-the-art Electromagnetic Finite Element Analysis model simulation to provide low reflection coefficient, with mode free operation to 27.0 GHz. In addition, this connector series provides -100 dB RF leakage due to the precision finish on the interface and mounting surfaces to assure a solid 360-degree contact in the critical RF return path, and the absence of epoxy holes in the connector body. The design of the internal structure provides a reliable and symmetrical axial captivation by mechanical means with a minimal disturbance to the transmission line characteristics and has a maximum continuous service temperature of 165¾ C

The field-replaceable receptacles are available for use with hermetic seals or accessory pins with diameters of .012, .015, .018, .020, or .036 inches.

Three types of SMA 27.0-GHz adapters are also included in this series, as are bulkhead receptacles.

Performance Features:

Mode free through 27.0 GHz • Low reflection loss (VSWR) • Low Insertion Loss • Low RF Leakage > -100 dB

Extended Operating Temperature (+165¾ C) • Phase Stable

Rigid center contact captivation using high temperature Ultem 1000 support bead

Consistent Unit to Unit Performance • All materials meet the Outgassing Requirements of NASA Publication 1124

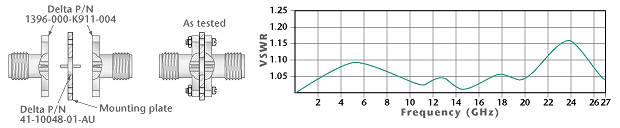

VSWR (typical):
