Twinaxial BNC







Delta's Twinaxial BNC Series

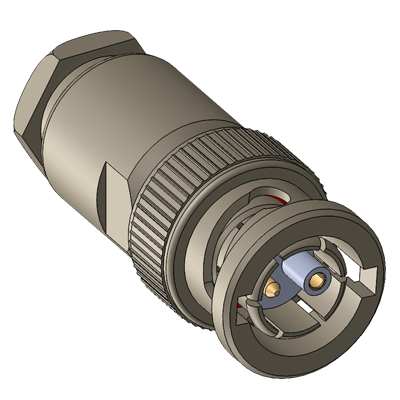

Delta TWBNC connectors are compact, 78 Ω impedance twinaxial connectors with two-stud bayonet coupling. They are similar to BNC connectors and are best suited for use with RG-108/U and similar twinaxial cables.

TWBNC connectors contain one male and one email contact, with mating polarization provided by a stepped insulator. Delta BNC connectors meet the requirements of MIL-C-3655.

Nominal Impedance: 78 Ω

Frequency Range: DC-500 MHz.

Voltage Rating: 500 volts RMS.

Dielectric Withstanding Voltage: 1,500 VRMS.

Insulation Resistance: 5,000 megohms.
