Vita 67 Product Line

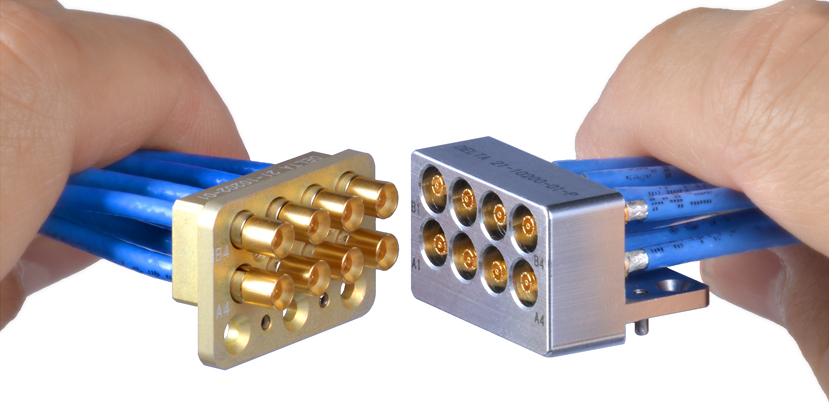

“Delta Electronics Manufacturing Corp. introduces 4 position (VITA 67.1) and 8 position (VITA 67.2 RF connector housings designed for 3U and 6U formats within the OpenVPX ™ architecture. Ideal for blind mating daughtercards to motherboards, the SMPM RF contacts provide +/- .010” radial misalignment tolerance and excellent return loss up to 40 GHz. Precision machined from either stainless steel or aluminum, the 4 and 8 position housings are available with pre-loaded SMPM adapters or a cost effective, direct snap-in, cable mount SMPM contact. The right angle daughtercard solutions are offered with the direct snap-in SMPM contacts designed for both .047” and .086” flexible semi-rigid cable.”

Vita 67 Applications

• VITA OpenVPX™ compliant solution.

• VITA 67.1: 4 position RF housing.

• VITA 67.2: 8 position RF housing.

• Housings machined from stainless steel or aluminum.

• .240” center-to-center spacing.

• SMPM dimensions in accordance with Mil-STD-348.

• SMPM RF contacts operate to 40 GHz.
