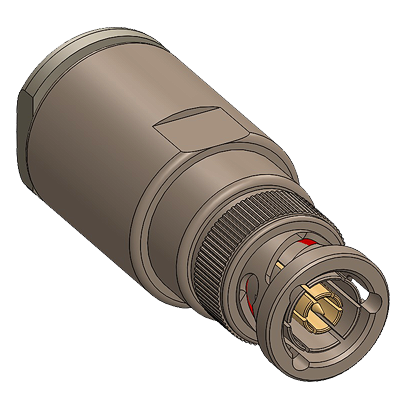

Delta TRB Connectors are compact, triaxial connectors with three-stud bayonet coupling. They are similar in size to BNC connectors, and can be used with a wide range of twin axial and triaxial cables. Their three-stud mating prevents rocking of mated pairs and ensures the low leakage and excellent shielding required in a data-bus and other high speed digital applications.
Delta TRB Connectors are designed and manufactured to meet the requirements of MIL-C-49142. As with all other Delta connector series, we welcome your specifications for special configurations.
Nominal Impedance: Non constant.
Frequency Range: DC-500 MHz.
Voltage Rating: 400 volts RMS.
Dielectric Withstanding Voltage: 1,200 VRMS.
Insulation Resistance: 5,000 megohms.
