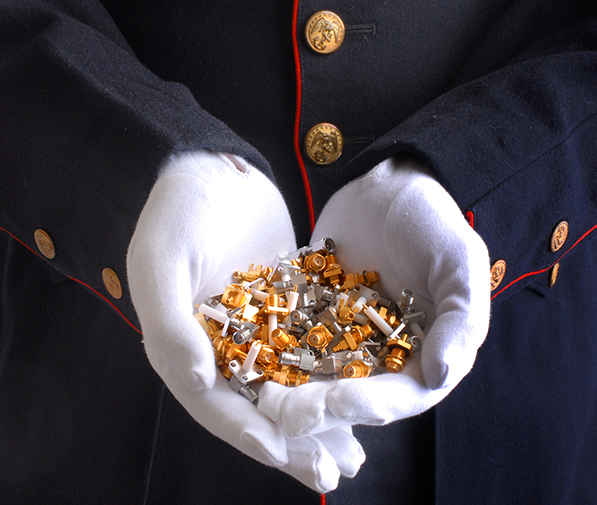

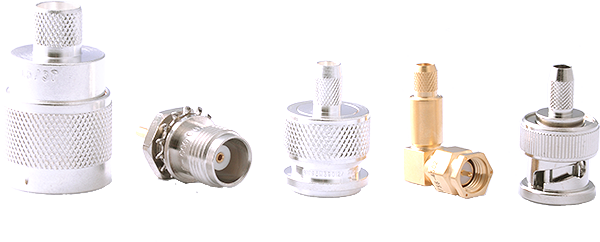

We now have over 200 connectors and adapters qualified to MIL-PRF-39012 and MIL-PRF-55339, in series BNC, N, SMA and TNC.
Our MIL products brochure contains complete specifications and drawings for all our M39012 connectors and M55339 adapters.
Delta continues to build its military interconnect portfolio and is capable of qualifying new QPL’s to support obsolescence, shortfall and sole source print position. Reach out to one of our team members about any QPL product not currently available in our line-up. Click on the image of the catalog to download a copy of the brochure in PDF format. We also manufacture a wide range of military connectors with older CW-, MX-, and UG-nomenclature. To see a copy of our Mil-spec catalog please click on the catalog below.
In addition to a wide variety of adapters within each connector series, we offer one of the industry's most complete lines of adapters between series. All except SMA adapters are available with silver, nickel, or Albaloy body plating. Many of these adapters feature panel or bulkhead mounting for transitioning from internal device cabling to other series used to connect the unit to other devices or cable assemblies. We have a wide range of adapters qualified to MIL-A-55339 .

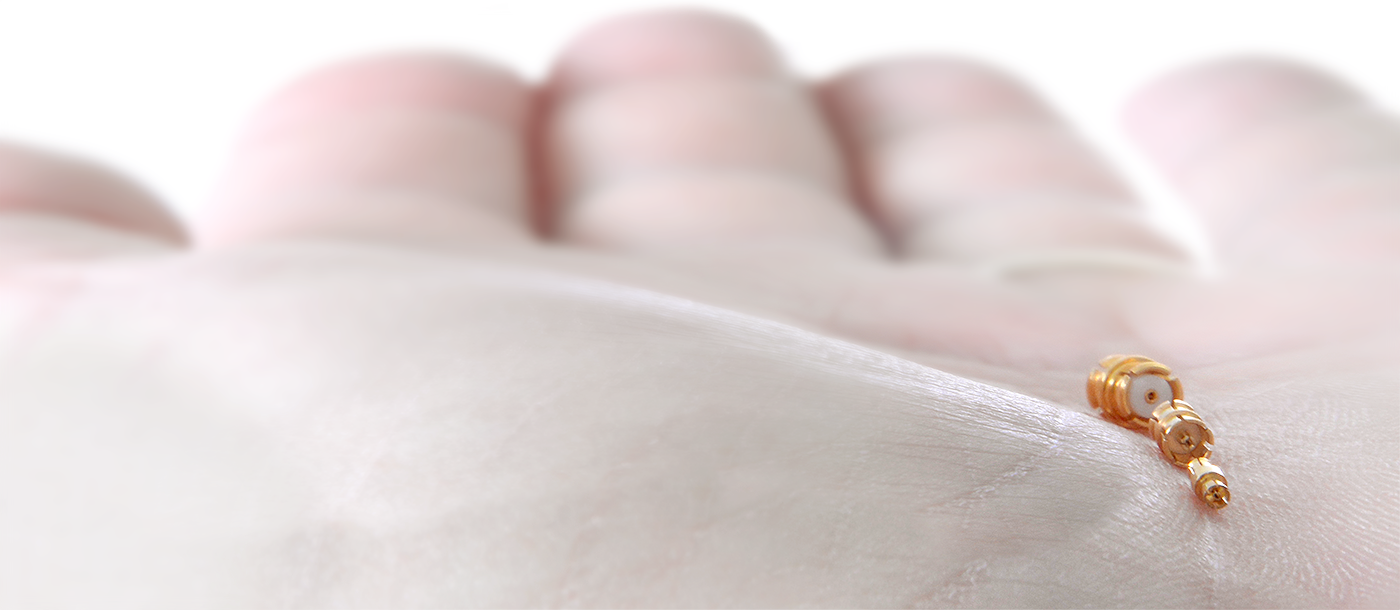

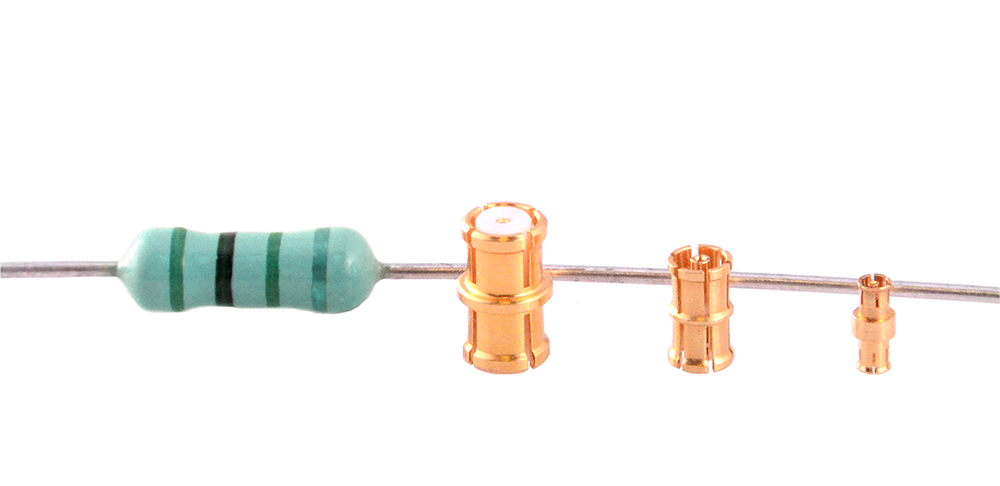

Similar in functionality to the SMPM series, the SMPS series is 30% smaller than the SMPM series. While the SMPS construction allows for higher frequencies up to 65 GHz, Delta recognized applications where low interface board-board interconnects were in demand typically did not range above 18 GHz. For this reason Delta has developed 2 lines – The Economical Line (E-Line) and HF Line of SMPS. For higher frequency applications ranging above 40 GHz, tightly tolerance components and extreme handling and processing is required. The end result is a higher manufacturing cost.
The SMPS series has a center to center mounting spacing of .078 of an inch and a minimum board to board spacing of .125” when utilizing its smallest bullet adapter (.098”) and shrouds (.015 board to reference plane). Board mounts are supplied in numerous configurations – surface mount, thru mount and edge mount and bullets lengths range from .098 to .500” in length for the standard product offerings. Contact Delta today with your design requirements and our engineering team will offer you to most cost effective solution. For more information click here.
